Chain Conveyor

FIELD OF USE

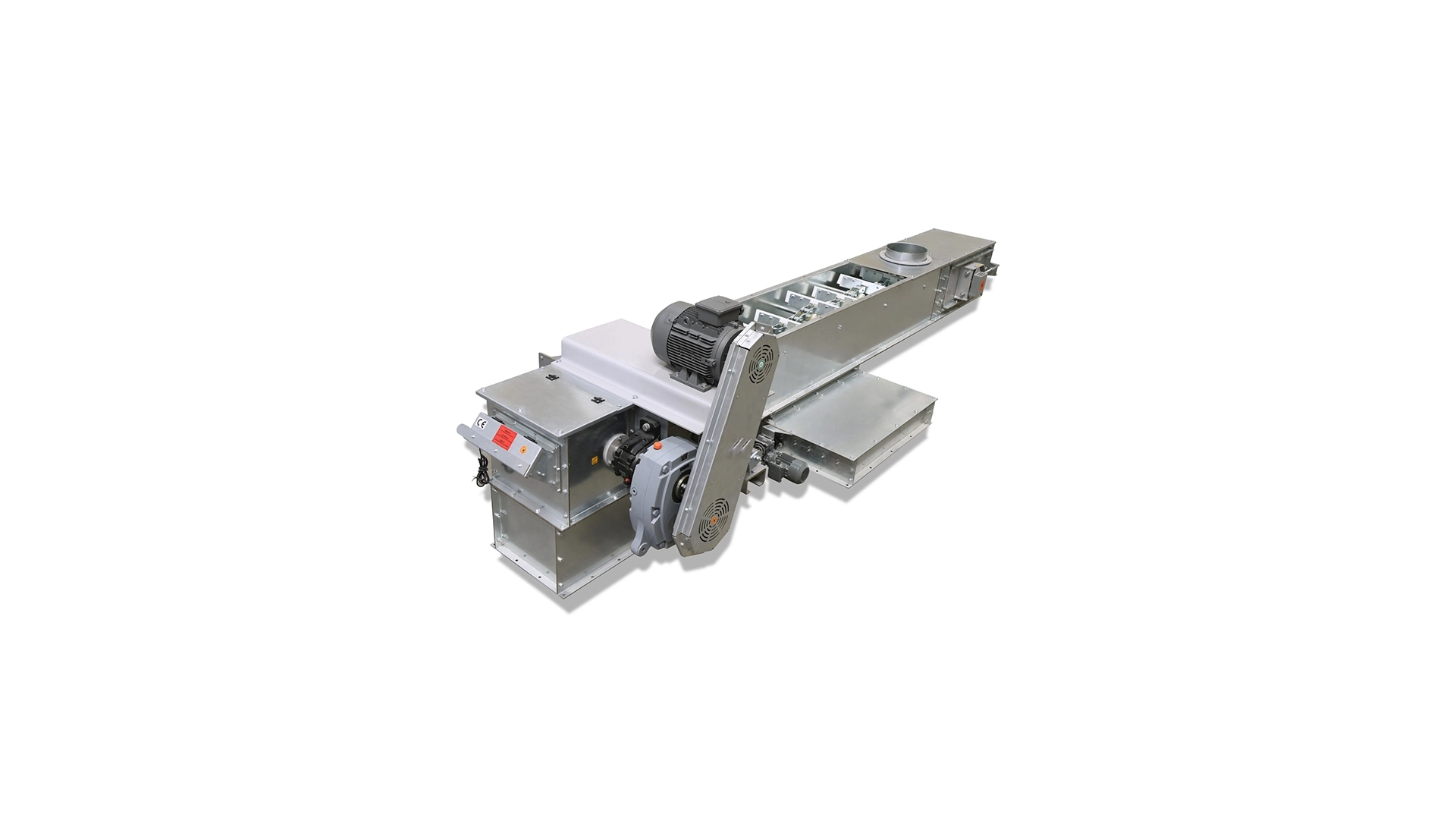

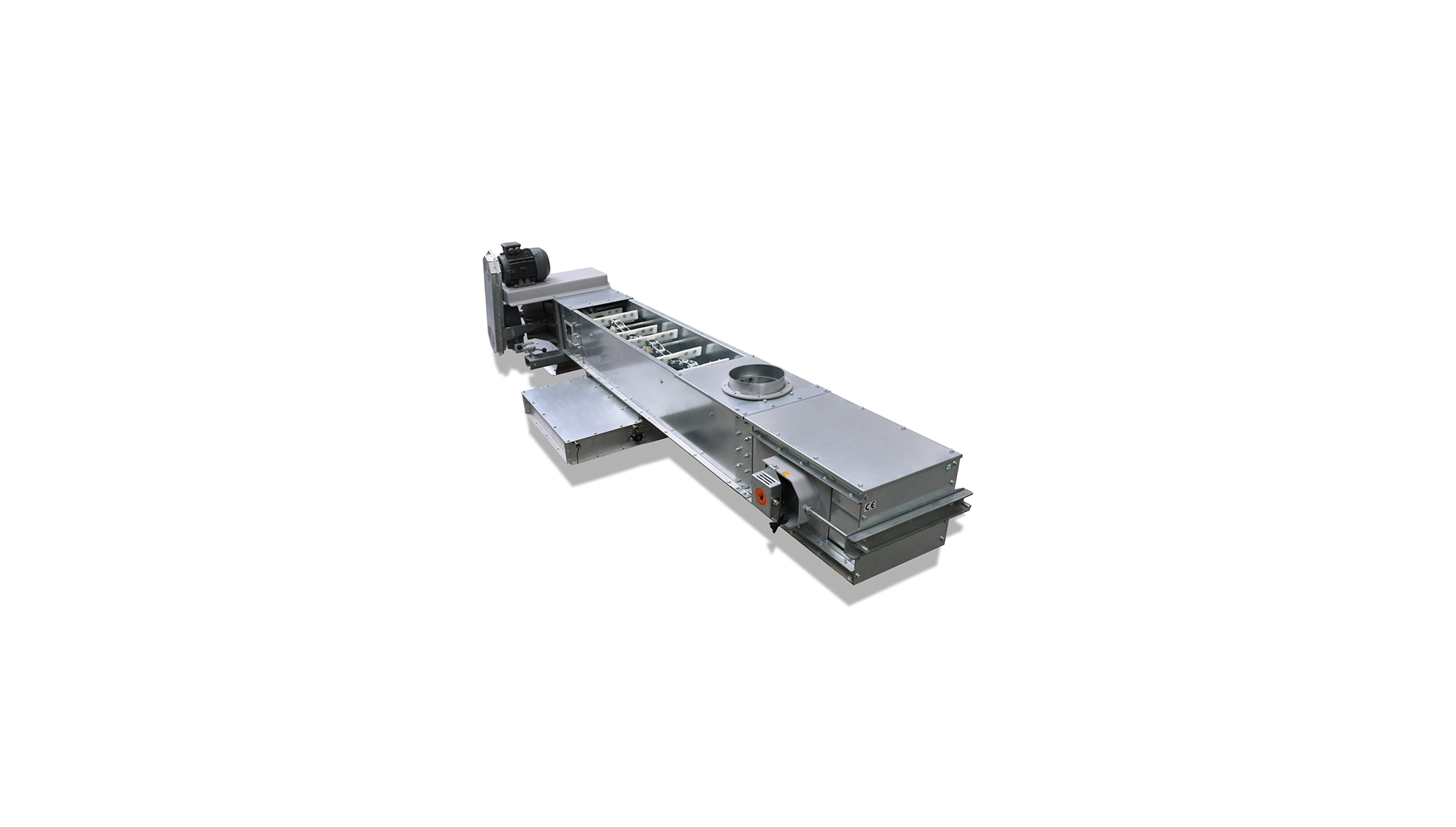

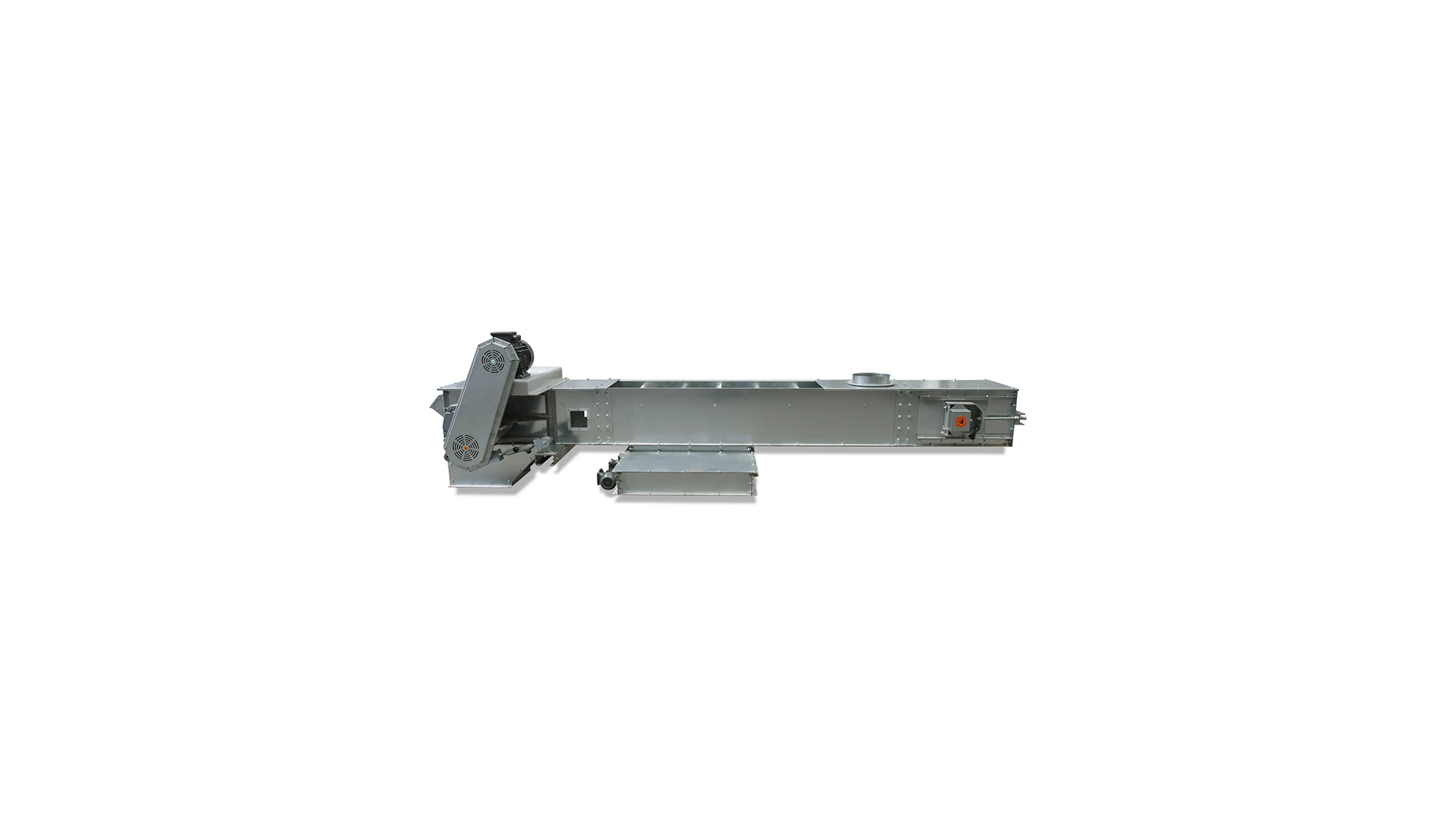

The enclosed, rectangular-section steel housing is equipped with a winged endless chain. The lower section of the chain moves along the bottom of the steel housing, carrying the material. The return section of the chain is guided along a central rail. The chain loops around a sprocket at the discharge end and an idler pulley at the inlet end. The material and the chain move at the same speed. The product is discharged from the conveyor by flowing down from the chain at the outlet. The chain design allows for multiple inlets to be placed along the entire length of the conveyor. It is also possible to install discharge gates that can be operated manually or remotely.

FEATURES AND ADVANTAGES

  • Provides dust-free and hygienic working conditions
  • Protective measure against dust explosions
  • High capacity, requires less space
  • Enclosed structure, dust- and airtight design
  • Robust and safe
  • Long lifespan and durability
  • Adjustable capacity using ZT series chain assembly
  • The most important and active component of the chain conveyor system is the chain itself. The chain is manufactured using a special forging and hardening process to achieve the required high tensile strength and wear resistance.
  • For special applications in food processing and handling, a stainless steel chain can be supplied.
